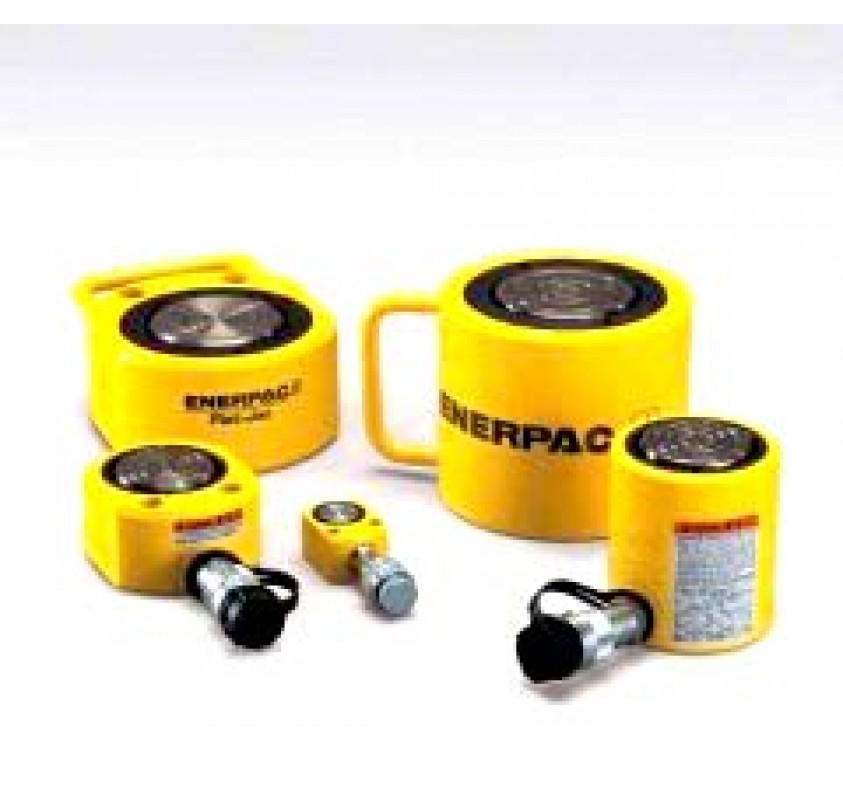

Low Height Cylinders

Low Height Cylinders Specification

Pressure
700 bar (Max)

Wall Thickness
Heavy-duty seamless steel

Capacity
10 ton

Temperature
-20C to +65C

Material
Alloy steel

Structure
Single acting, spring return

Power
Hydraulic

Dimensions
Height: 45 mm, Diameter: 85 mm

Max. Stroke
13 mm

Shaft Diameter
28 mm

Seals Type
High pressure polyurethane seals

Rod
Hard chrome plated

Weight
2.3 kg

Application
Used in confined spaces for lifting, pushing, or positioning

Operation Position
Can be used in horizontal and vertical positions

Safety Feature
Built-in safety valve to prevent over-extension

Mounting Type
Flat base for easy placement

Testing
Pressure tested up to 1.5 times working pressure before dispatch

Return Type
Spring return

Oil Port Size
3/8" NPT

Surface Treatment
Powder coated body for corrosion resistance

Finish
Yellow industrial enamel paint

Low Height Cylinders Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
500 Pieces Per Month

Delivery Time
7 Days

About Low Height Cylinders

Experience unparalleled performance with our Scarce Low Height Hydraulic Cylinders, crafted from robust alloy steel and decorated with a powder-coated body for lasting corrosion resistance. Designed with a flat base and a monumental capacity of 10 tons, these cylinders fit effortlessly into confined spaces, ensuring reduced footprint and enhanced productivity. Personalise your lifting solutions with added safety, thanks to a built-in safety valve. Heavy-duty seamless construction and hard chrome plating ensure durability, while every unit is pressure tested beyond standards for ultimate reliability. Suitable for horizontal and vertical operations, with a striking yellow finish.

Key Features and Extra Benefits for Industrial Applications

Our Low Height Cylinders offer unique features tailored for machine and plant use. The extra heavy-duty seamless steel construction, high-pressure polyurethane seals, and hard chrome plated rod ensure durability and efficiency. With a flat base for steady placement and spring return for easy retraction, these cylinders are ideal for precision tasks in tight spaces. Rigorously pressure tested for safety, they are suited for a variety of industrial applications, offering reliability and flexibility in both horizontal and vertical use.

Domestic Market, Professional Packaging, and Sample Policy Explained

We cater predominantly to the Indian domestic market, delivering Low Height Cylinders securely packaged to prevent any transit damage. Each shipment includes sturdy packing material, ensuring safe drop-off and minimal freight-related risks. For quotations and bulk orders, our team offers detailed guidance, while small samples can be provided as per our sample policy. Quick response and transparent processes help streamline the experience from initial quotation to final delivery, meeting clients' unique requirements across various industries.

FAQ's of Low Height Cylinders:

Q: How do I operate the Low Height Cylinder safely in both horizontal and vertical positions?

A: The cylinder is engineered for use in both horizontal and vertical orientations, supported by its flat mounting base and spring return function. Always ensure alignment during placement and make use of the built-in safety valve to prevent over-extension during operation.

Q: What is the process for obtaining a quotation or sample for the Low Height Cylinder?

A: To receive a quotation or request a sample, simply contact our sales team with your specifications and quantity requirements. We provide clear pricing details, sample policies, and estimated freight charges based on your location.

Q: When should I use a Low Height Cylinder over a standard cylinder?

A: Low Height Cylinders are especially useful in spaces where height clearance is reduced or access is limited, such as under machinery, in maintenance bays, or in construction settings requiring precise lifting or pushing in tight environments.

Q: Where can these cylinders be applied most effectively?

A: These cylinders are best suited for industrial machine setup, heavy plant maintenance, confined-positioning tasks, and any scenario requiring powerful yet compact lifting or pushing capabilities.

Q: What safety features enhance the operation of these cylinders?

A: Each cylinder is fitted with a built-in safety valve that prevents over-extension, reducing risk during high-pressure use. Additionally, all cylinders are pressure tested up to 1.5 times the working pressure before dispatch.

Q: How are the cylinders packaged for domestic drop-off and freight shipping?

A: Cylinders are packed in strong, protective materials tailored for industrial components. This ensures safe handling during local drop-off and minimises damage or risks during freight transport.
